Select Your Own Product
Start your search anywhere. Click the button to ‘Find Product’ at any point.
Select Your Market Segment
Select Your Application
Select Your Product Type
Valve
Cylinder
Gauge
Valve Attributes

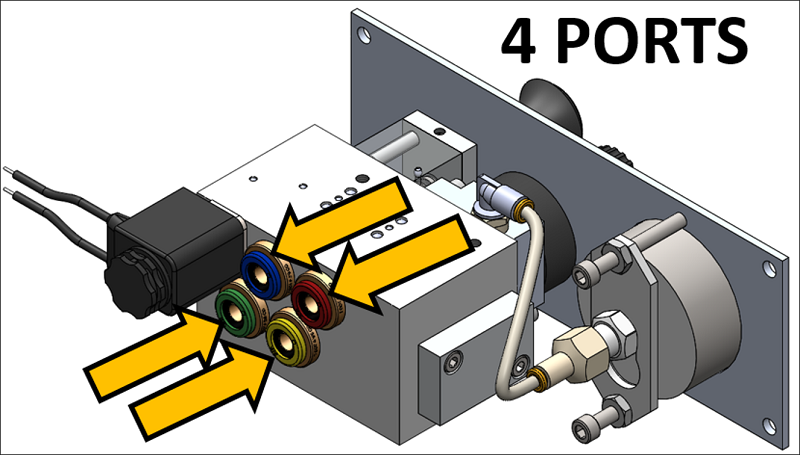

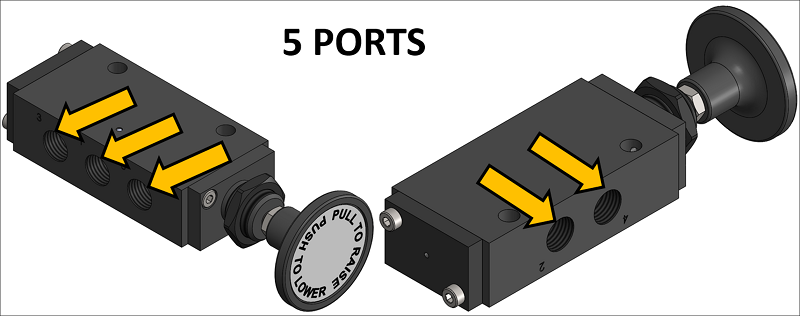

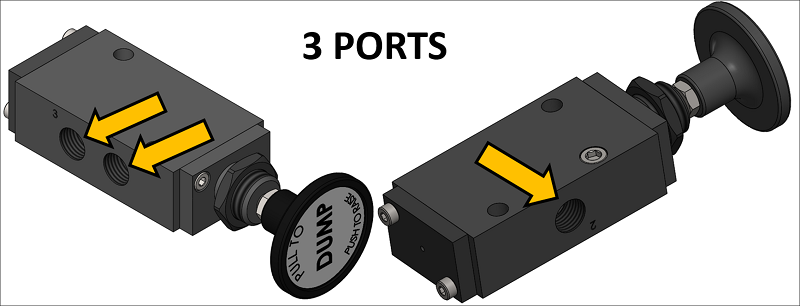

Number of ports

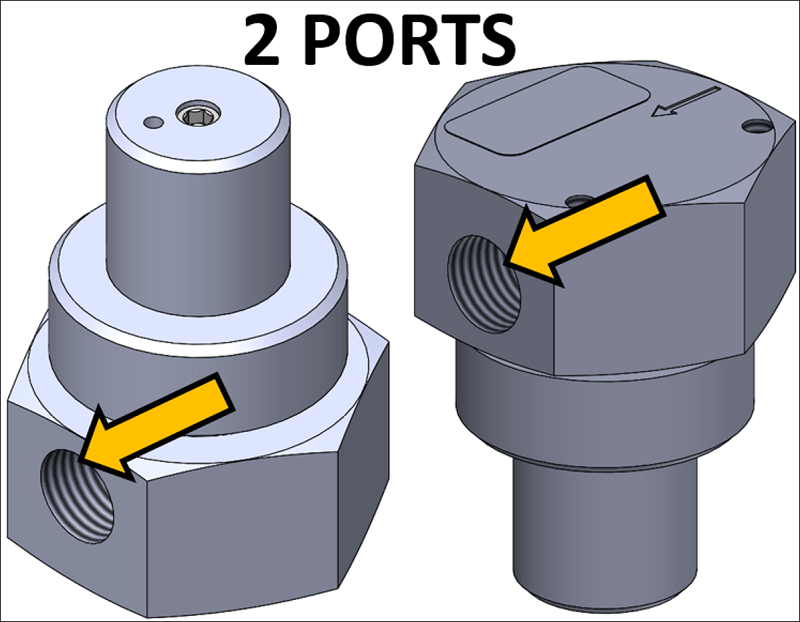

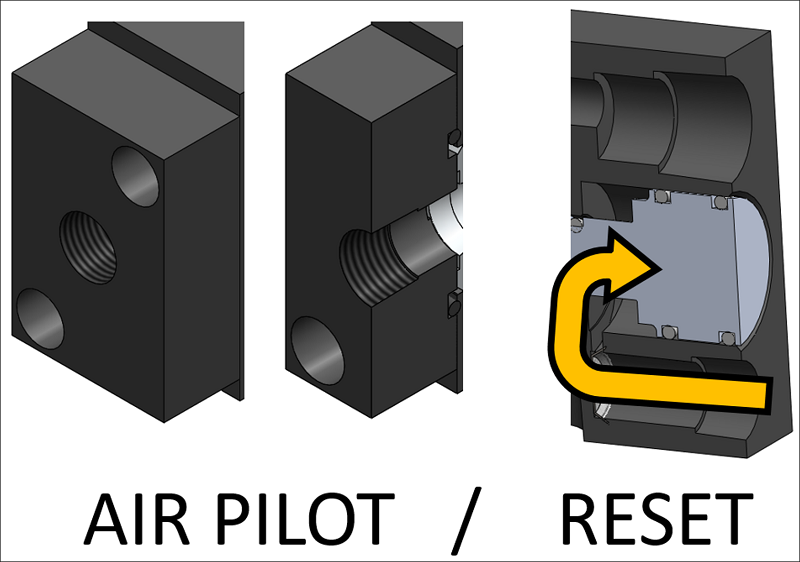

Number of Ports refers to the number of working ports. (does not include reset, air pilot or external pilot ports)Number of Positions

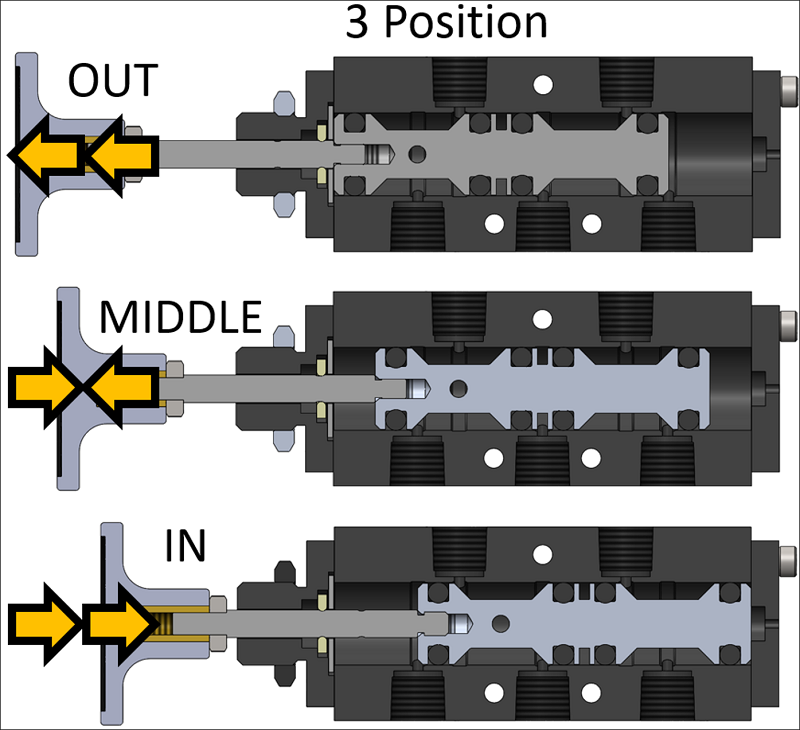

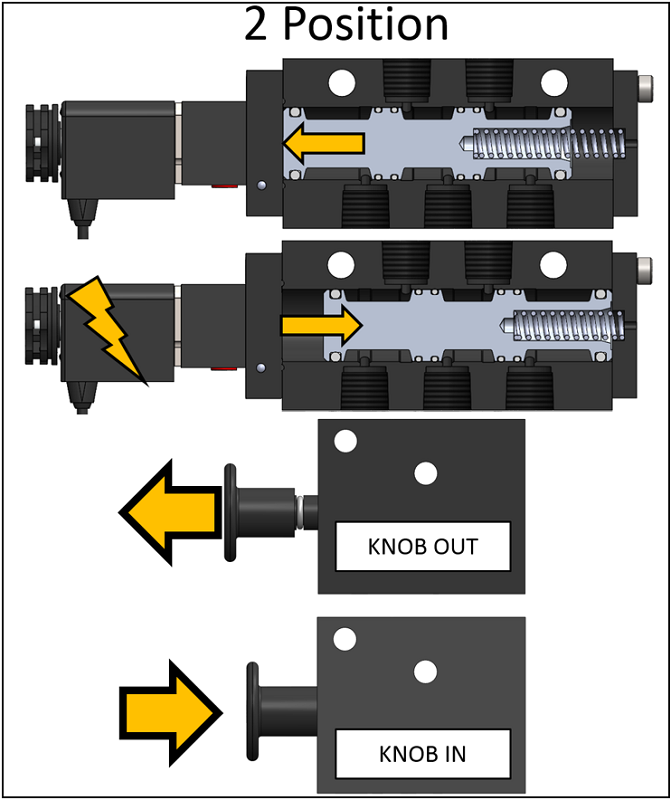

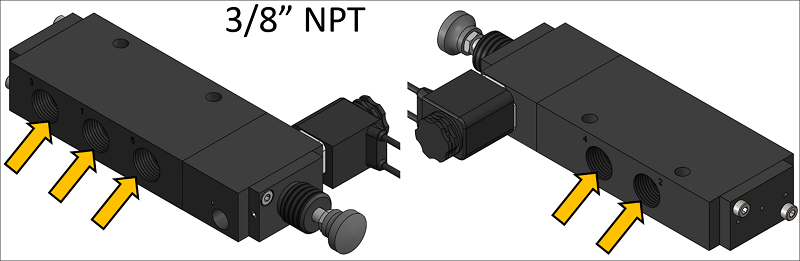

Number of positions for the valve operatorsPort Size

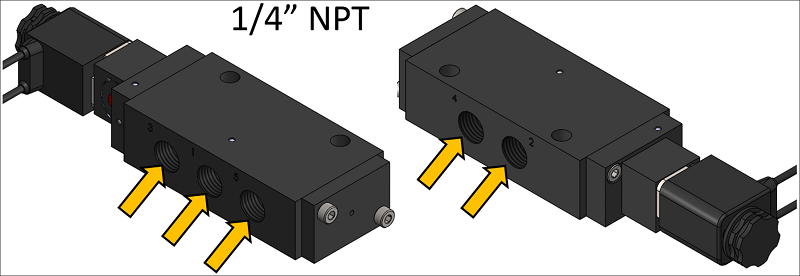

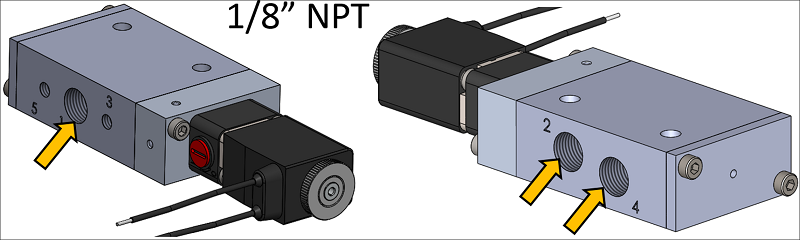

Thread size for the main working ports. Often the pilot port (if equipped) is smaller than the working port. Use size of the majority of ports if there is variation across the valve.Type of Operator 12

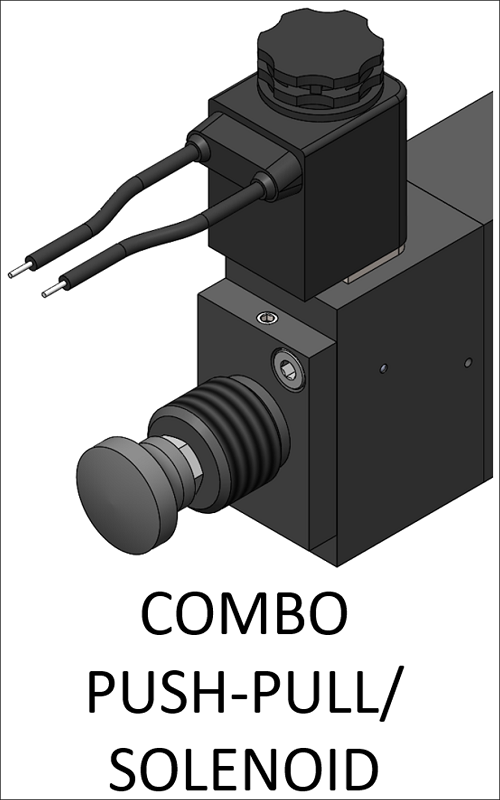

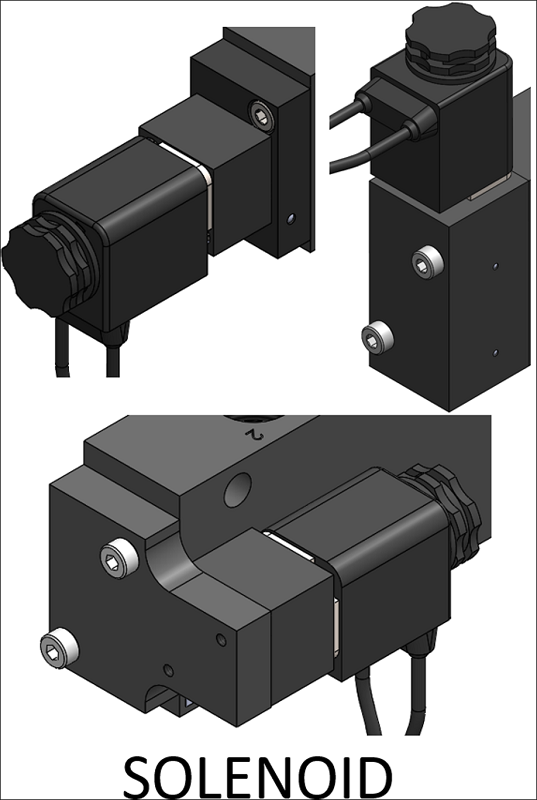

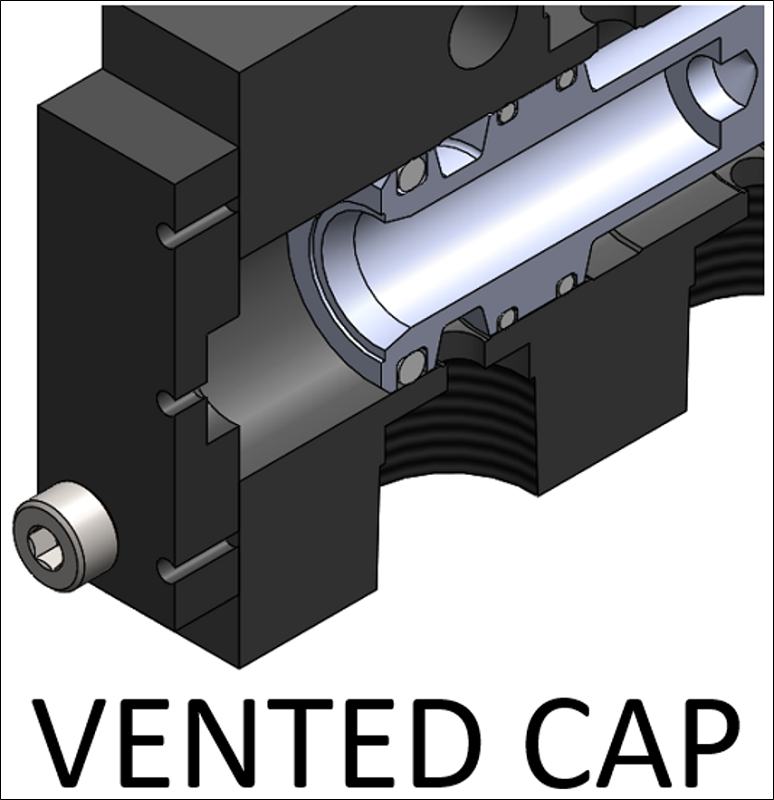

Operator on the 12 side of the valve. 12 applies to both a 3 port and 5 port valve.Type of Operator 14 / 32

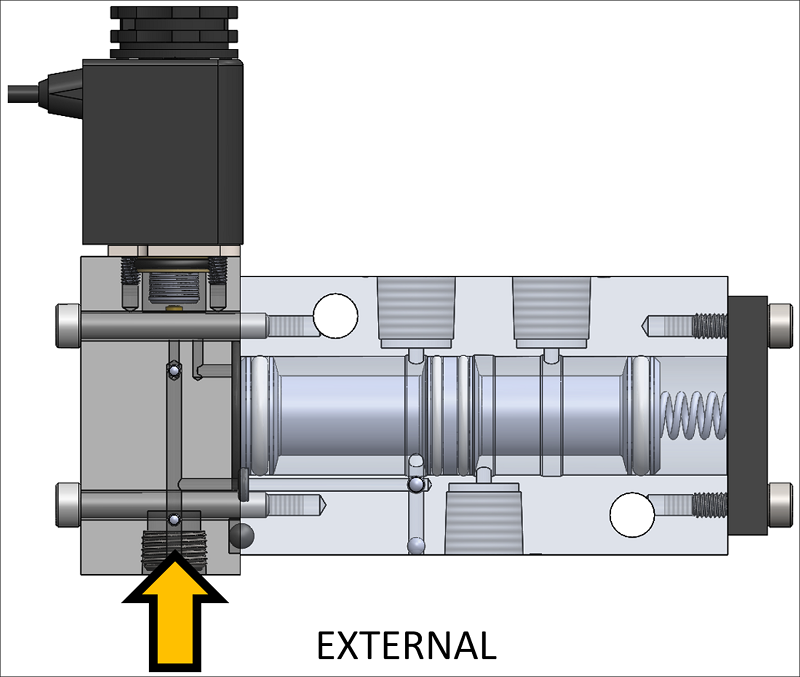

"Operator on the 14 (5 port) or 32 (3 port) side of the valve."Pilot Source

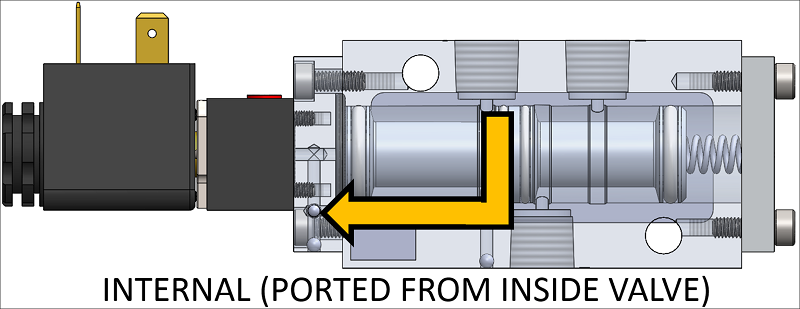

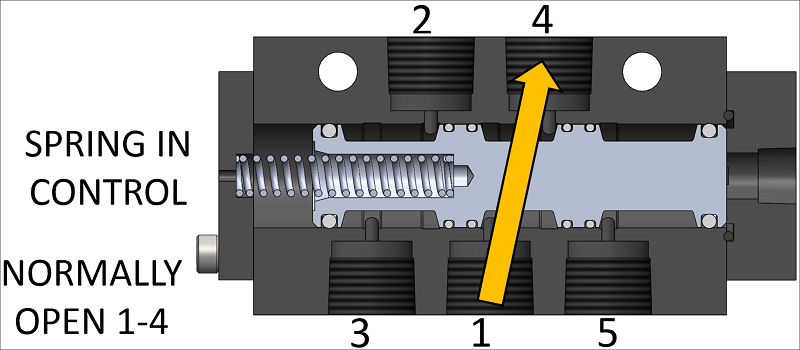

Designates where AIR pilot pressure is supplied from either internally (typically the supply, Port 1) or externally. External often required when valve has multiple sources of pressure or common exhaust configuration. (Only applies to Solenoid Operated valves)Normally Open Port

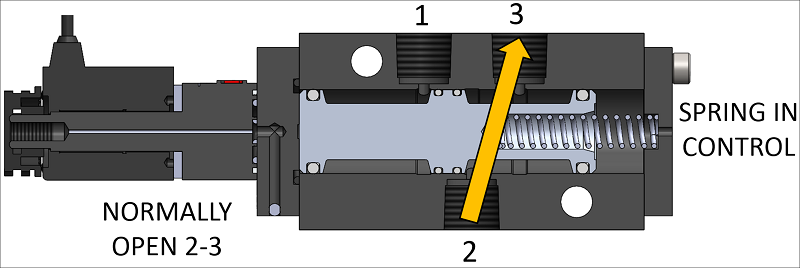

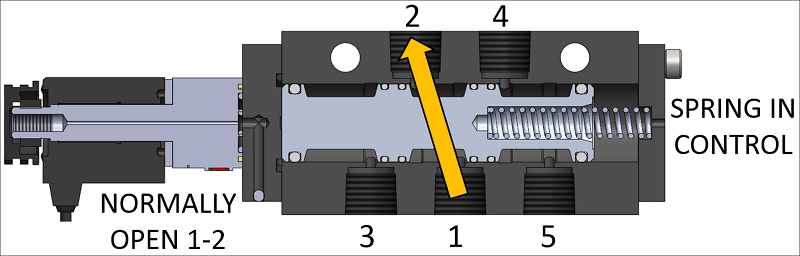

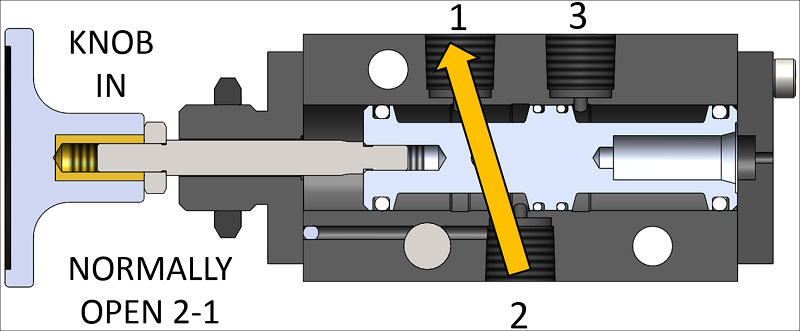

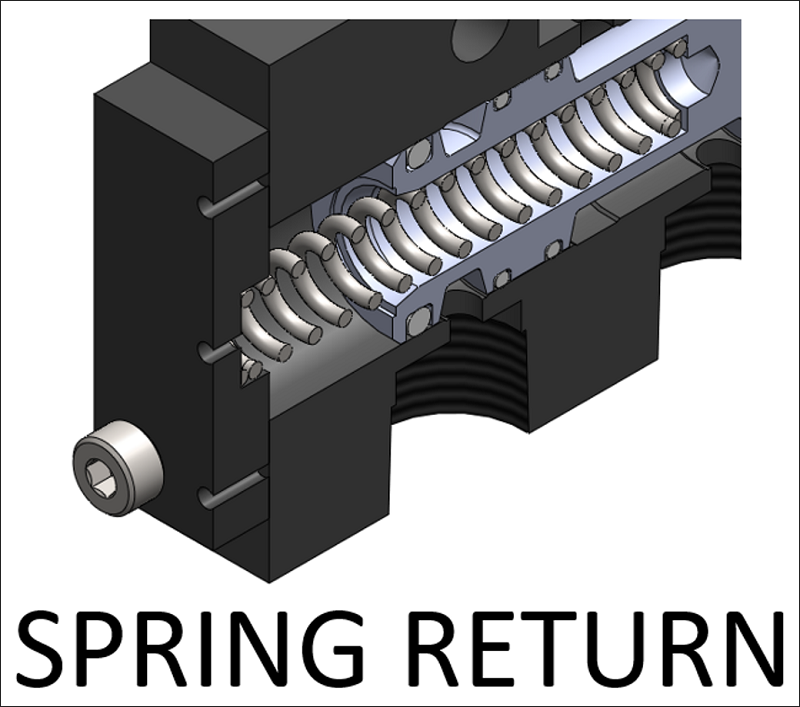

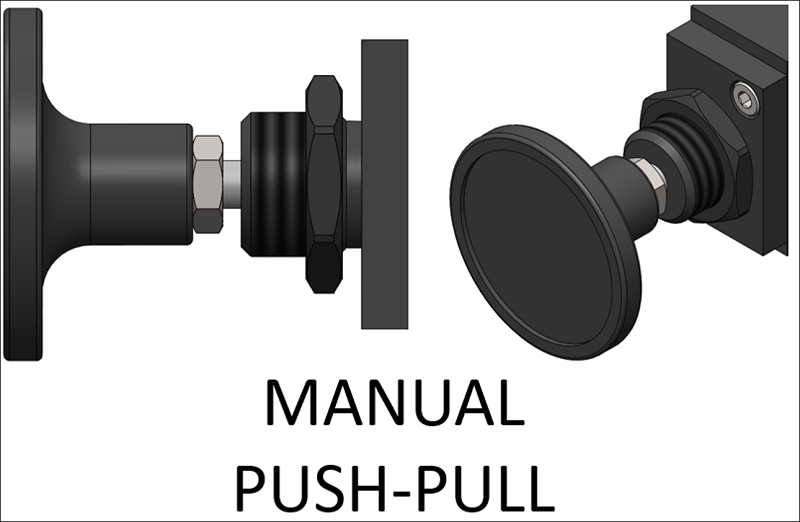

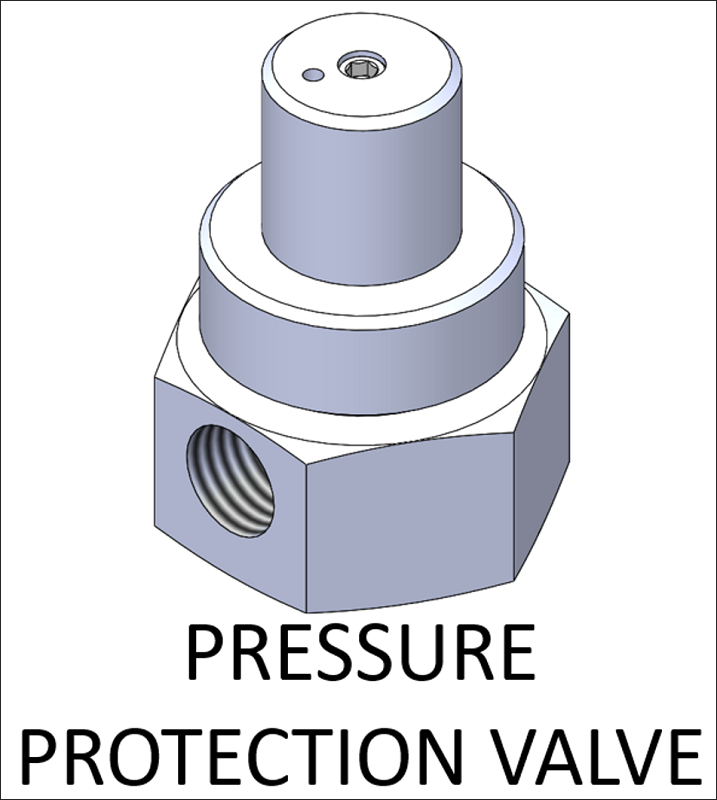

Ports that are connected when valve in its default state. Spring return operator will often define the default state. Manual Push-Pull operator is typically default = KNOB IN.Special Feature

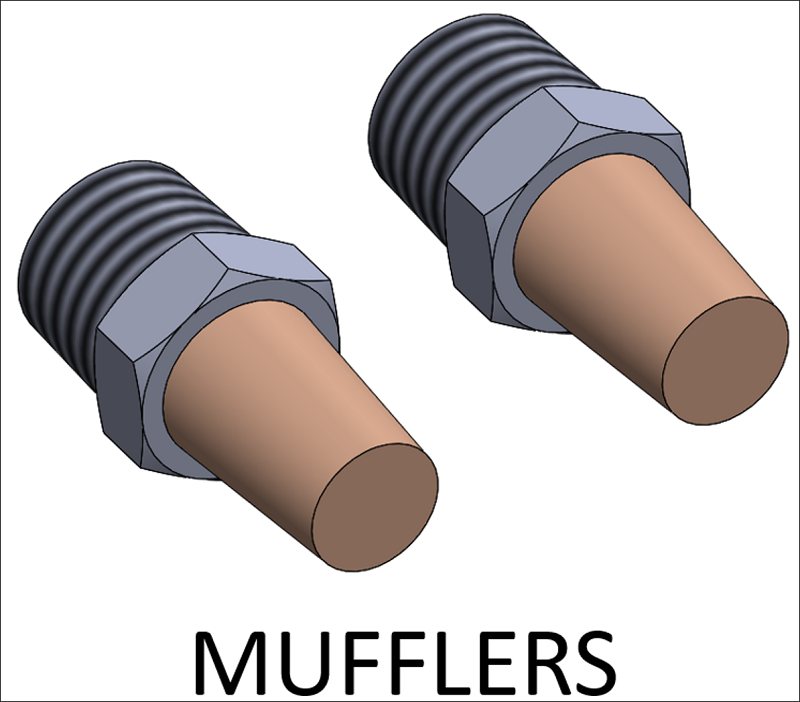

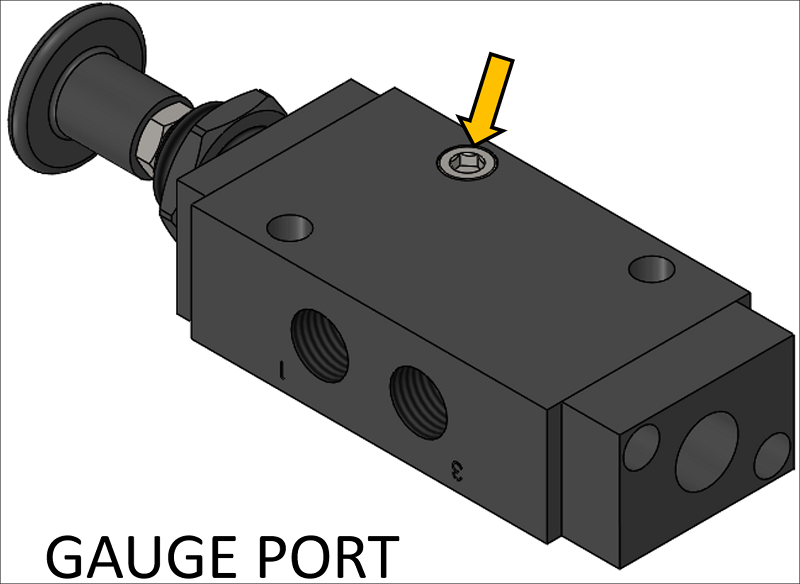

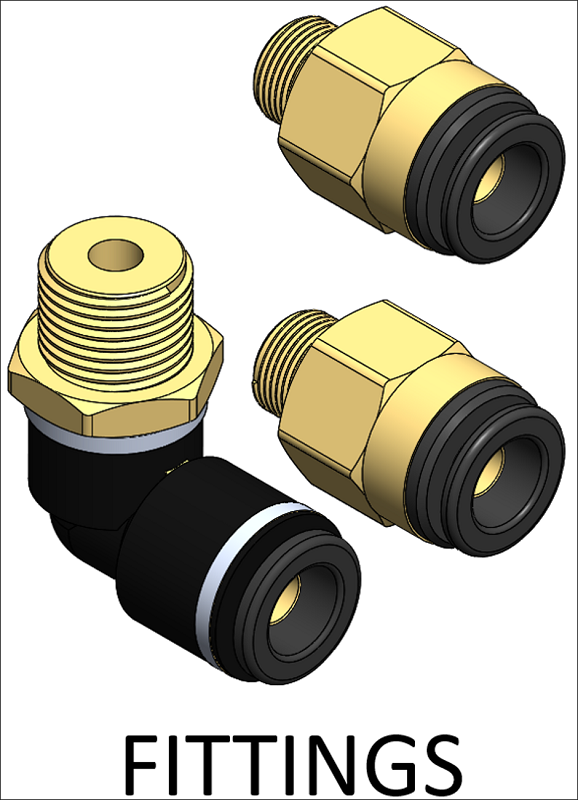

"Any EXTRA Components or Features included in the package. Sometimes this is fittings, labels, fasteners, gauge port, regulator, etc.(Can be combined for example:

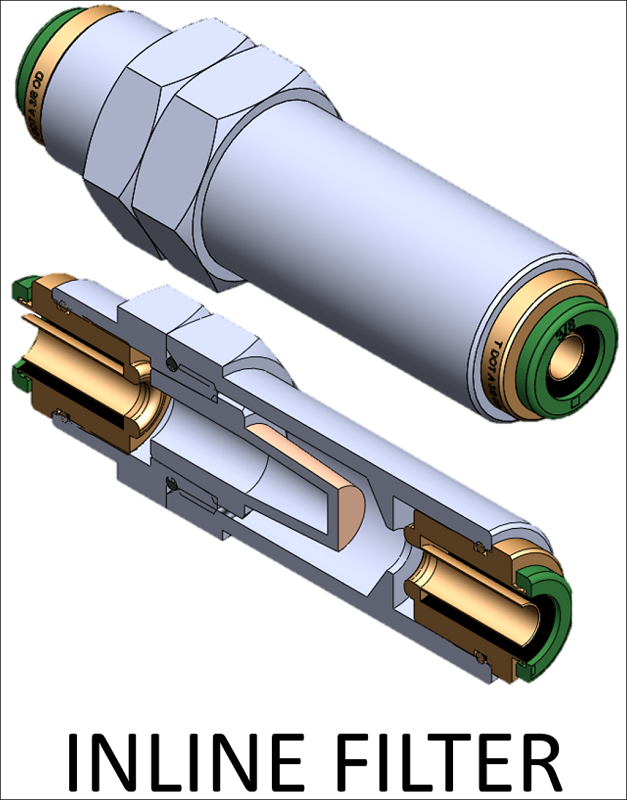

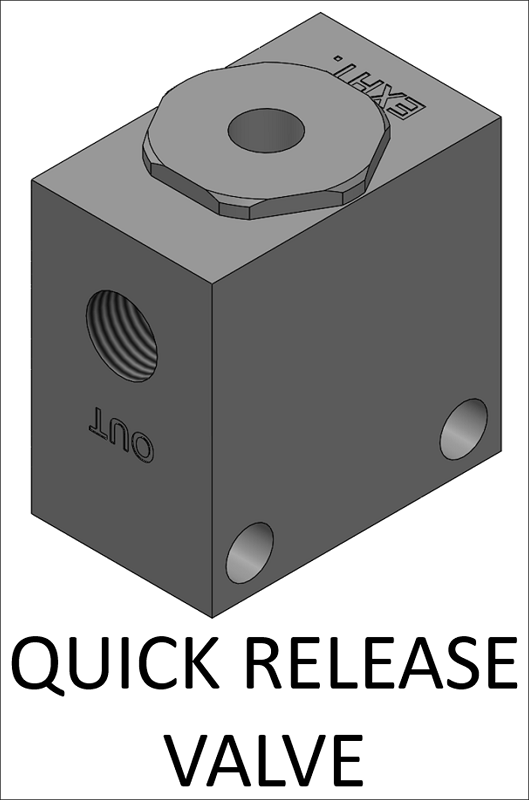

Inline Filter , Pressure Protection Valve and quick Release kit = IPQ

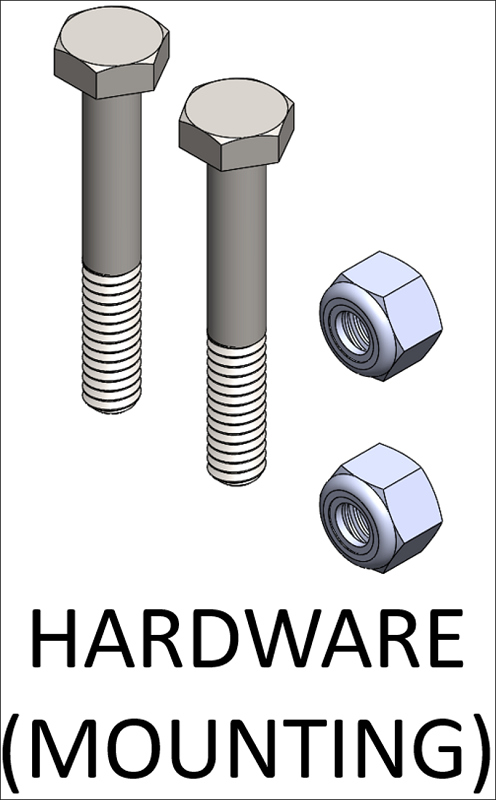

Fittings + hardware (moutning) = FH)"
More Attribute Options
Cylinder Attributes

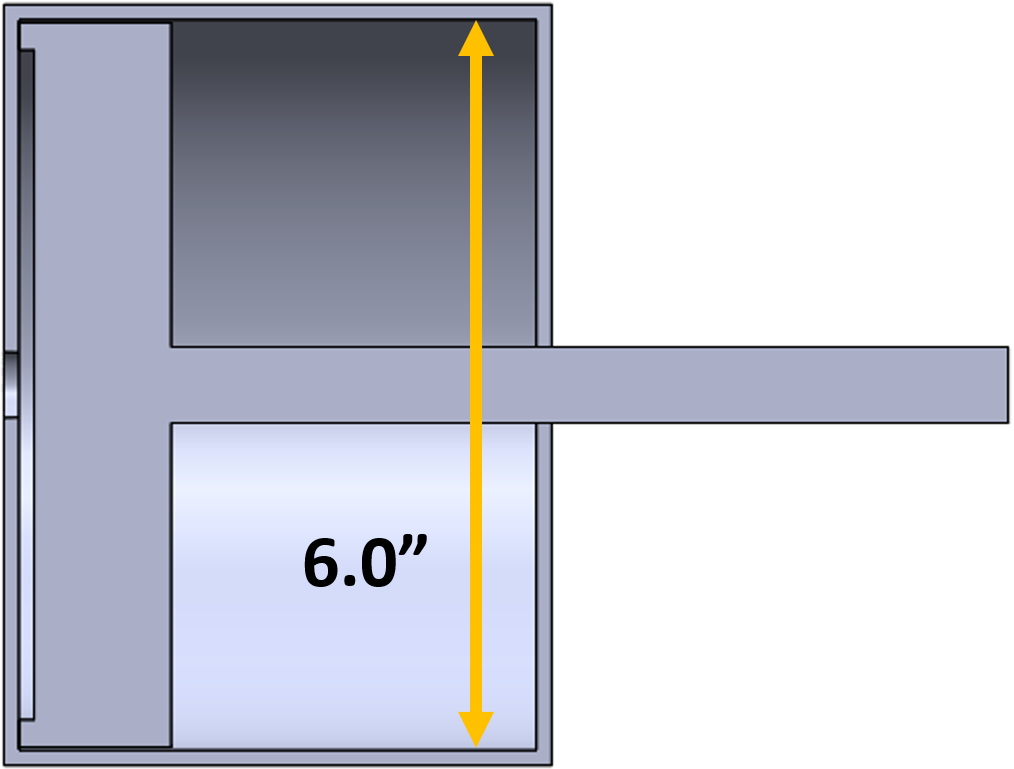

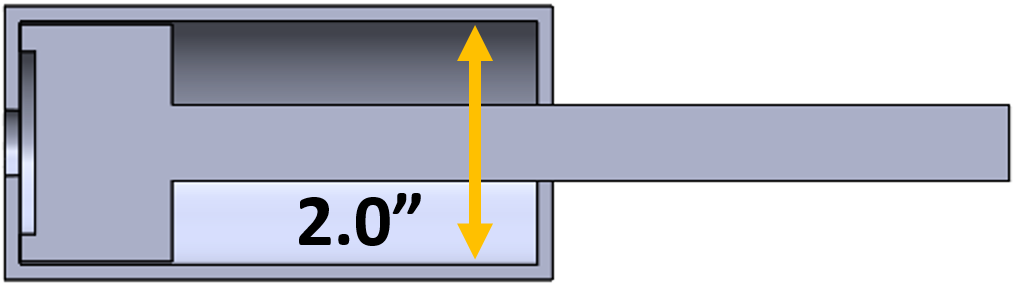

Bore Diameter

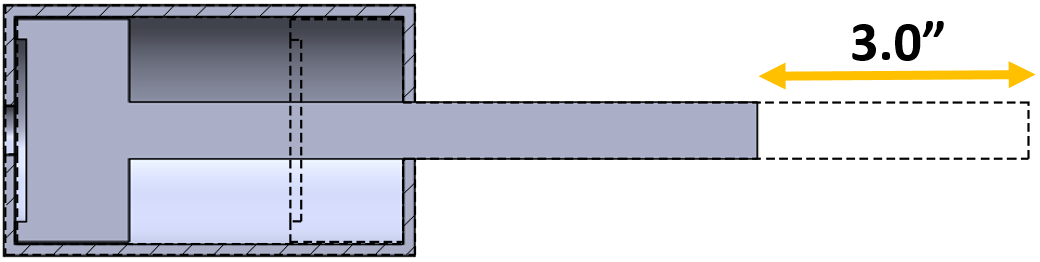

Cylinder Diameter (inches)Stroke

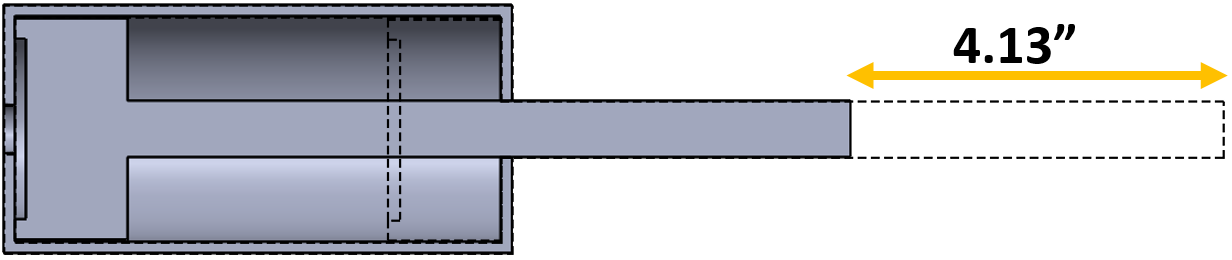

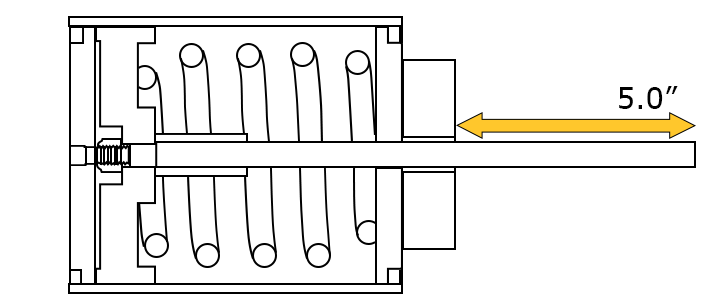

Rod displacement through full stroke (inches)Rod Extension

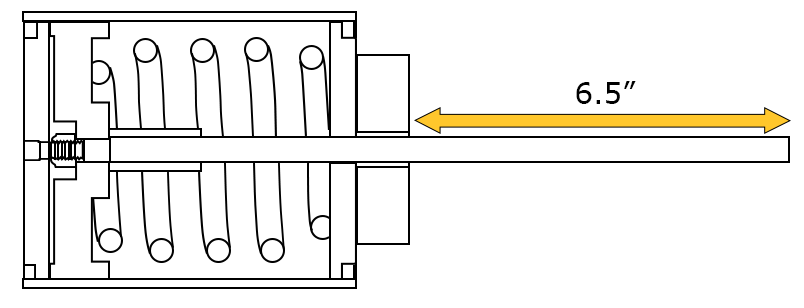

Effective length of rod that extends past the end cap. Rod with thread = end of rod. Rod with clevis bore = length from end cap face to CL of clevis bore.Rod Diameter

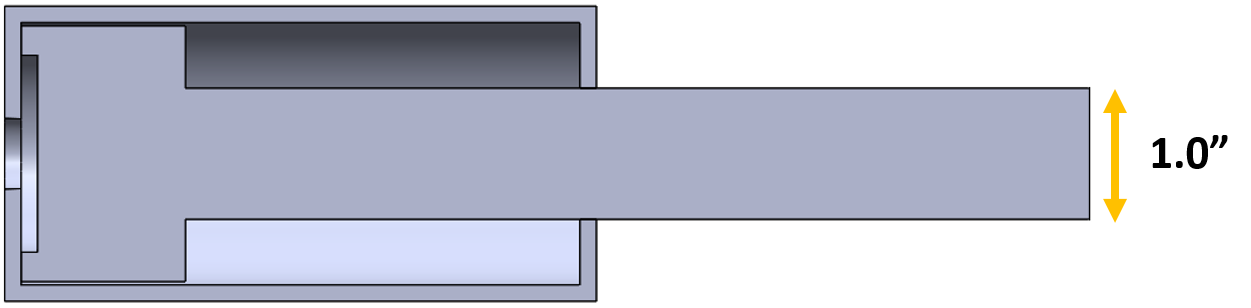

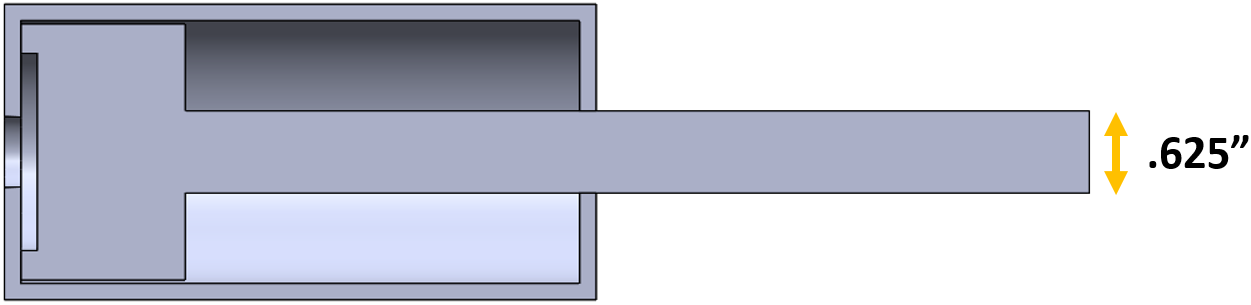

Diameter of the Rod (inches)More Attribute Options
Product Result:
No Filters Selected.
V380E90512-DAL-BLK
VALVE, .38 NPT, 5-2, PUSH-PULL AND SOLENOID COMBINATION -SPRING RETURN, 12DC, MANUAL OVRD WITH EXTERNAL PILOT
Go To Product
V1866N0512-DAL-BLK
VALVE, .125 NPT, 5-2, SMALL EXHAUST, SOLENOID - SPRING RETURN, 12DC
Go To Product
V38505E912-DAL-BLK
VALVE, .38 NPT, 5-2, LONG BODY, PUSH-PULL SOLENOID COMBINATION - SPRING RETURN, MANUAL OVRD WITH EXTERNAL PILOT
Go To Product
V385050912-DAL-BLK
VALVE, .38 NPT, 5-2, LONG BODY, PUSH-PULL AND SOLENOID COMBINATION-SPRING RETURN, MANUAL OVRD WITH INTERNAL PILOT
Go To Product
