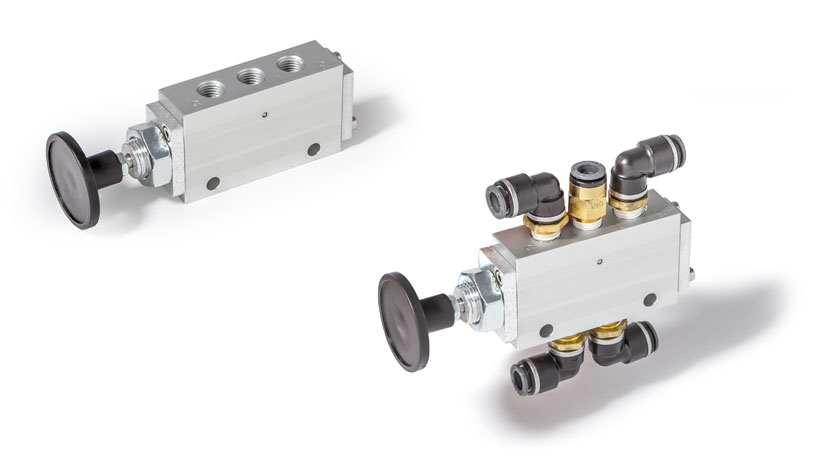

Manual Push-Pull Operated Valve
Available With or Without Fittings
Product Description
Heavy duty push/pull valves designed for use in extreme operating conditions.
| Model Number | Specifications |
|---|---|
| V251S20021-BLK | VALVE, .25 NPT, 3-2, PUSH-PULL WITH DETENT - VENTED CAP |
| B2400-B38 | VALVE, .25 NPT, 5-2, VENTED CAP-PUSH-PULL WITH DETENT + LABELS |
| B2400-B39 | VALVE, .25 NPT, 5-3, VENTED CAP-PUSH-PULL WITH DETENT + LABEL |
| B2400-B40 | VALVE, .38 NPT, 5-2, VENTED CAP-PUSH-PULL WITH DETENT + LABELS |
| B2400-B43 | VALVE, .25 NPT, 3-2, PUSH-PULL-VENTED CAP + DUMP LABEL |
| B2400-B73 | .25 NPT, 5-2, VENTED CAP-PUSH-PULL WITH DETENT WITH FITTINGS |
| B2400-889-BLK | VALVE, .25 NPT, 3-2, PUSH-PULL, REMOTE RESET |
Benefits & Features
- Aircraft quality 6061 billet aluminum construction is anodized for a tough exterior finish
- 16 RMS bore finish, stainless steel knob extensions and fasteners withstand corrosive environments
- All manual operated valve constructions have panel mount capability
- Large push/pull knobs are easier to handle with heavy gloves
- Tough Nitrile seals rated for -65℉ and work well in dirty airline conditions
- Silicon-based "heavy transport lube" used to assemble AIRman valves; won't wash away because of airline condensation
- Porting orifices are slotted and internally configured to provide maximum seal life
- Lower power draw solenoids rated NEMA 4X include a lifetime guarantee against burnout
- Option: Wide variety of operators to fit any mobile pneumatic application
